Heat, contamination, poor electrical contact, and wire-feeding problems can cause MIG gun consumables to wear more quickly. Proper storage, setup, liner trimming, and routine cleaning can help extend consumable life and reduce unnecessary replacements.

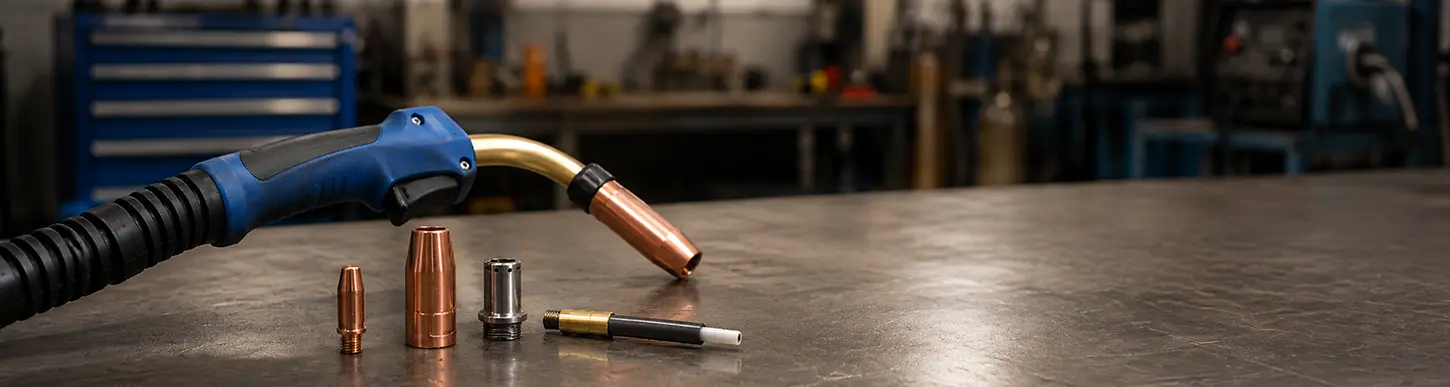

What Are MIG Gun Consumables?

MIG gun consumables are the replaceable parts at the front of a MIG gun, along with the liner inside the gun. These components include the contact tip, nozzle, gas diffuser, and liner. They help move the wire, guide shielding gas, and carry electrical current through the gun to the weld.

MIG weld quality depends on consistent wire feeding, shielding gas coverage, and electrical contact. When consumables begin to wear, weld quality may decline and defects may occur, resulting in additional time spent troubleshooting and correcting problems.

Many consumable problems may be caused by preventable issues, including improper storage, excessive contact tip stickout, spatter buildup, poor electrical connections, or a liner cut to the wrong length.

The following practices can help MIG gun consumables last longer in small shops and production environments.

MIG Contact Tips	MIG Nozzles	MIG Diffusers	MIG Liners

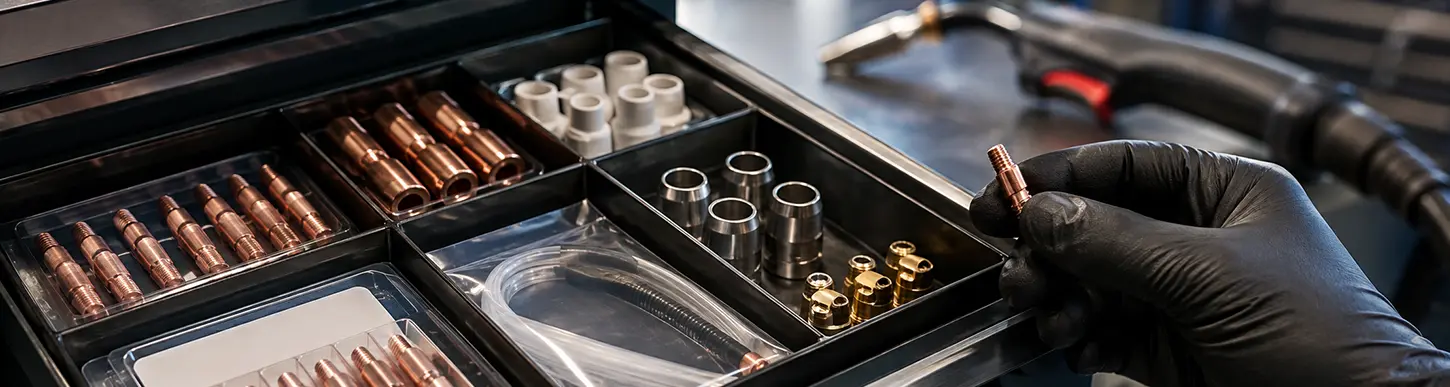

Store and Handle MIG Gun Consumables Carefully

MIG gun consumables should be stored and handled carefully to help protect their surfaces, threads, and connections. Dirt, dents, or damaged threads may contribute to poor contact, overheating, and spatter buildup.

Good storage and handling practices include:


• Keep consumables in their original packaging until they are needed.

• Store consumables in a clean, dry drawer rather than an open bin.

• Handle consumables with clean gloves.

• Check threads for damage before installation.

These practices can help parts last longer and reduce mid-shift replacements.

Check MIG Contact Tip Stickout and Nozzle Position

Contact tip stickout can affect heat and spatter. When the tip extends too far beyond the nozzle, it may become excessively hot and wear more quickly.

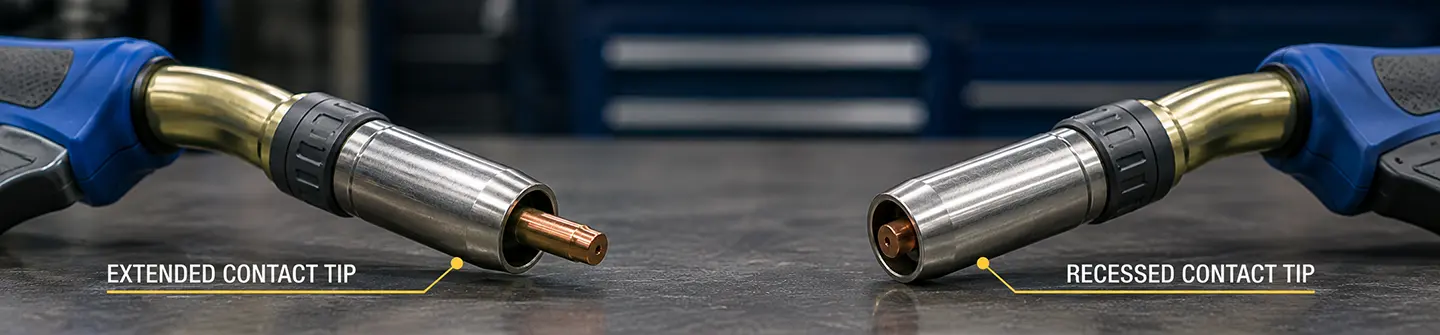

Extended and Recessed Contact Tips

Extended contact tips are exposed to more heat and spatter, while recessed tips remain cooler and cleaner.

Use an extended contact tip when the application requires it. When possible, a recessed tip may help protect the service life of the contact tip.

Maintain Strong Electrical Contact Throughout the MIG Gun

Poor electrical contact can create additional heat, which may cause consumables to wear or fail more quickly.

Common electrical contact problems include:


• Loose contact tips

• Dirty or damaged threads

• Worn gas diffusers

• Poor connections to the gun neck

When comparing consumables, look for tight, tapered connections, smooth machining, and strong retaining heads.

Good electrical contact can help the MIG gun operate more consistently and at a lower temperature.

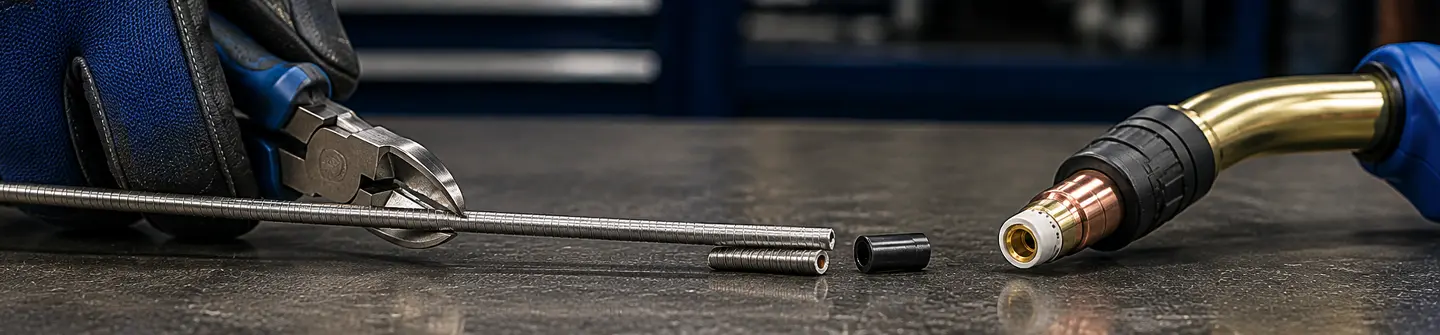

Trim the MIG Gun Liner to the Correct Length

The MIG liner guides welding wire from the feeder to the contact tip. If the liner is cut too long or too short, it can interfere with wire feeding through the gun.

When the Liner Is Too Long

If the liner is too long, it may compress inside the gun and increase friction. The welding wire may drag or kink, causing erratic feeding, an unstable arc, and faster contact tip wear.

When the Liner Is Too Short

If the liner is too short, the resulting gap may collect dust and metal shavings. That buildup can increase friction and contribute to burnbacks and contact tip failures.

To trim the liner correctly:


• Follow the manufacturer’s trimming instructions.

• Use the recommended cutting tool.

• Smooth sharp edges after cutting.

• Confirm that the liner seats fully into the gas diffuser.

A properly trimmed liner can help improve wire feeding and extend contact tip life.

Control Spatter Buildup Around the Nozzle

Weld spatter can accumulate inside the nozzle and around the contact tip and diffuser. This buildup may restrict shielding gas flow and trap heat around the consumables.

Use Anti-Spatter Products Correctly

A light coating of an appropriate anti-spatter product may help control buildup. Applying too much can leave a sticky residue that may clog the gas diffuser.

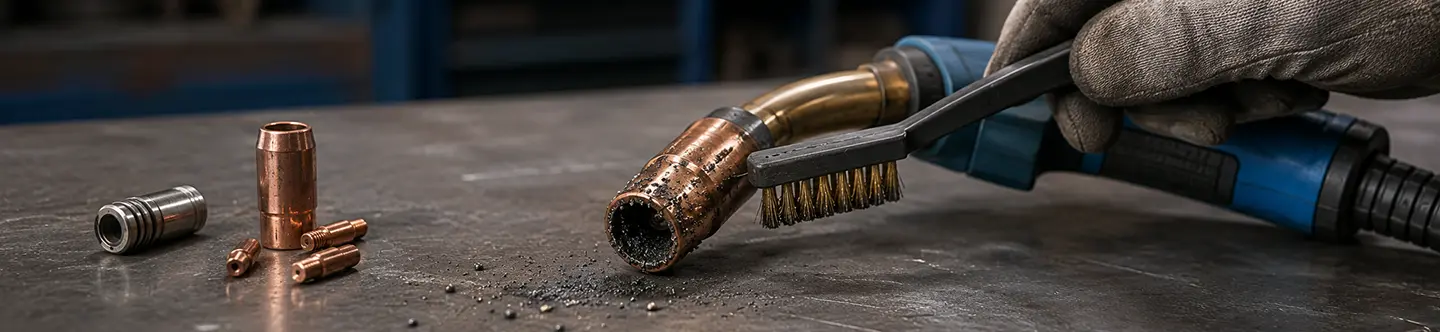

Clean the Nozzle Carefully


• Use a soft wire brush.

• Do not strike the nozzle against the workpiece.

• Inspect the nozzle regularly, particularly during long welds.

Keeping the nozzle clean can help consumables remain cooler and last longer.

Choose MIG Gun Consumables for the Welding Workload

Lower-cost consumables may reduce the initial purchase price but may also require more frequent replacement.

High-quality consumables may provide better heat resistance, stronger electrical contact, longer service life, and fewer mid-shift interruptions.

Select consumables that match the welding workload. High-volume production welding may require more durable components than occasional repair or maintenance work.
