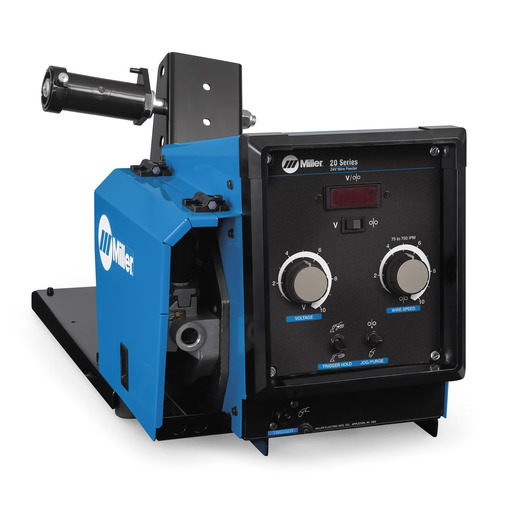

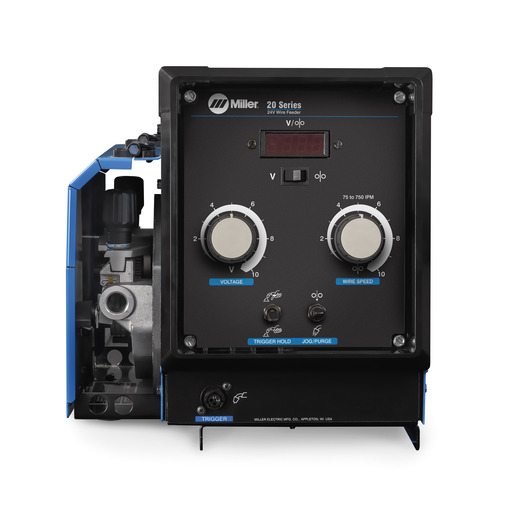

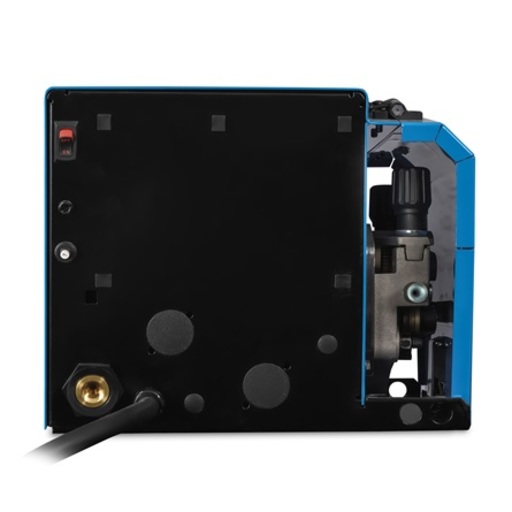

Miller Electric 20 Series Feeder, w/ Meters, Run-In Voltage Control | 301499001

Brand: Miller Electric
Manufacturer Part #:

301499001


Welding Supply Part Number: MIL301499001
 /

  • $3,481.00 / Each
  •  Standard Delivery
Miller Electric 20 Series Feeder, w/ Meters, Run-In Voltage Control

Simple and cost-effective four drive roll wire feeder for industrial manufacturing and fabricating.

Features

  • Industrial Design -Ideal for most high-duty-cycle applications requiring day-in/day-out trouble-free operation.
  • Motor Ramp and Burnback Control - Provides excellent wire starting and stopping performance.
  • Four Gear-Driven Drive Rolls - Provide smooth, positive wire feeding for most wires.
  • Trigger Hold - Allows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue.
  • Quick-Change Drive Rolls - Save time with standard, quick-change drive rolls.
Brand Miller Electric
Amperage 500 A
Application MIG, Flux-cored Welding
Frequency 50/60 Hz
Maximum Wire Diameter 5/64 in
Minimum Wire Diameter 0.023 in
Overall Depth 27.875 in
Overall Height 16 in
Overall Width 12.375 in
Voltage 100 V
Maximum Wire Feed Speed 750 ipm
MFG 301499001
Minimum Wire Feed Speed 75 ipm
UNSPSC 23210000

Description

Miller Electric 20 Series Feeder, w/ Meters, Run-In Voltage Control

Simple and cost-effective four drive roll wire feeder for industrial manufacturing and fabricating.

Features

  • Industrial Design -Ideal for most high-duty-cycle applications requiring day-in/day-out trouble-free operation.
  • Motor Ramp and Burnback Control - Provides excellent wire starting and stopping performance.
  • Four Gear-Driven Drive Rolls - Provide smooth, positive wire feeding for most wires.
  • Trigger Hold - Allows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue.
  • Quick-Change Drive Rolls - Save time with standard, quick-change drive rolls.
