Miller Blanketing RegulatorWith Switch - CGA-580 | 16347-3

Miller Blanketing RegulatorWith Switch - CGA-580

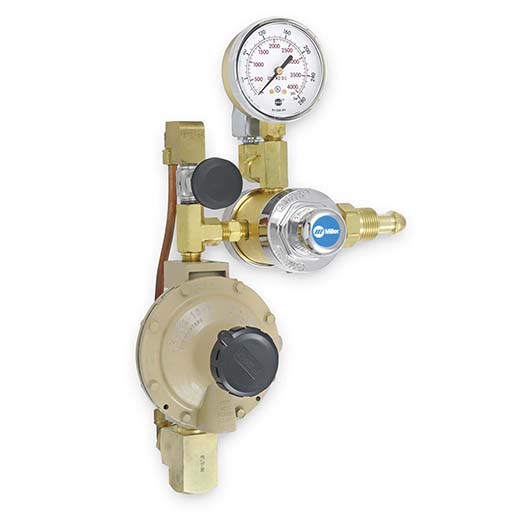

Three-stage regulator is specially designed to deliver a highly accurate and consistent low-pressure supply of nitrogen to oil-filled power transformers and comes with electronic pressure switch. The regulator will deliver and maintain 0.50 psig in the head space of oil-filled transformers. A built-in self-relieving valve set at 8 psig protects the system from over-pressurization due to temperature variation. Both models come with rapid-fill bypass pressure valve allowing rapid filling of the transformer with 6 psig of pressure.
