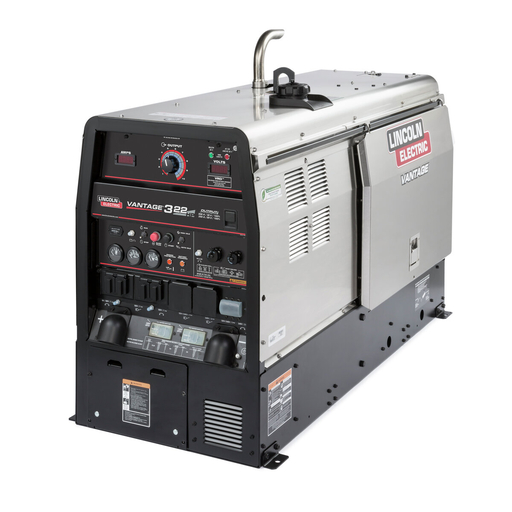

Lincoln Electric (Kubota) Engine Drive Welder | K2409-5

Excellent, all-around welder/generator capable of up to 400 amps of DC multi-process welding, 120/240 VAC single phase, and 240 VAC three phase auxiliary power. Powered by a 22 hp Kubota® V1505 diesel engine and features patented Chopper Technology®.

Details

The Vantage® 322 is a versatile welder/generator offering up to 400 amps of welding output and 11 kW of auxiliary power. Featuring a compact design and multi-process welding capabilities, the machine allows operators to handle a wide range of tasks from stick or wire welding to powering jobsite tools. Designed with dependability in mind, the Vantage 322 has field-proven toughness to maintain uptime. The Vantage 322 provides excellent value, which makes the ideal choice for construction teams, pipe rig owners, and rental fleet managers. Purchase one of these machines today!

Features

• Compact Versatility – Offers up to 400 amps (IEC rated at 300 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which maximizes output for up to 5/16 in. (8.0 mm) carbon rods.
• Generator Output – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
• Patented Chopper® Technology – Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal.
• Reliable Operations – Engineered tough and field proven for ruggedness and durability to meet the most challenging job site needs and harshest environments.
• Industrial Diesel Engine – Powered by a 22 hp, naturally aspirated Kubota® diesel engine. Runs smooth and quiet while meeting EPA Tier 4 Final compliance.
• Innovative Service Access – Lockable and removable sliding access door to service the engine and internal components, battery drawer on front of machine for quick access, and top-mounted radiator cover provide convenient access to the machine.
• Run Longer Between Fill Ups – Features a large 20 US gal. (75.7 L) fuel tank compared to smaller 11 US gal. (41.6 L) tanks in competitive machines
