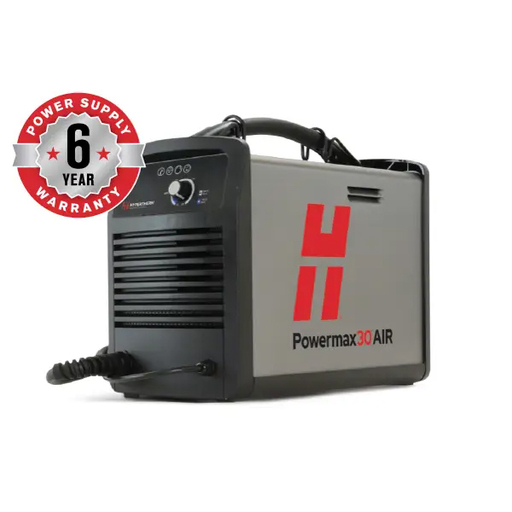

Hypertherm Powermax30 AIR Plasma Cutter, 15' Lead, 75° Hand Torch | 088096

System includes:

• Power supply, AIR T30 hand torch with 4,5 m (15') lead and work clamp with 4,5 m (15') lead
• 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits (CSA model)
• Operator and safety manuals
• 1 nozzle and 1 electrode
• Carrying strap

Despite its small size, the Powermax30 AIR delivers big performance. This small air plasma cutter- the smallest, lightest handheld plasma cutter in its class- includes its own built-in air compressor. That's right, it's a small plasma cutter with a built-in compressor so you can use the Powermax30 AIR anywhere there's single-phase power. Just plug it in, attach the work clamp and you're ready to cut. It's even dual-voltage. You can use it as a 120 V plasma cutter or at 240 V. Regardless of which power input (120 V or 240 V) you choose, we think you'll agree the Powermax30 AIR is the best plasma cutter with built-in compressor available today.

Benefits:

Easy to set up and operate

• Internal compressor eliminates the need for an external air compressor and filter
• Plug into any 120 or 240 V power (convenient Auto-Voltage™ technology and plug adapters included)

Superior performance in a compact package

• Patent-pending consumable design enables consistent cutting by optimizing the airflow from the compact, internal compressor
• Quickly cut metal grate or rusted metal without retriggering with the continuous pilot arc feature
• Fast cutting speeds and superior cut quality let you finish jobs quicker, with fewer secondary operations

Exceptional versatility

• Just one tool is all you need to cut a variety of metal types and thicknesses
• Small size and light weight let you take the Powermax30 AIR to the work, rather than bringing the work to the system – an ideal solution for a wide range of cutting applications
• Built to withstand heavy-duty use in the most demanding environments

Specifications:

• Input voltages: 120-240 V, 1-PH, 50/60 Hz
• Input current @ 2.5 kW: 120-240 V, 1-PH, 29-15 A
• Output current: 15-30 A
• Rated output voltage: 83 VDC
• Duty cycle @ 40°C (104°F): 35%, 240 V; 20%, 120 V
• Open circuit voltage OCV: 256 VDC
• Dimensions with handles: 420 mm (16.5") D; 195 mm (7.7") W; 333 mm (13.1") H
• Weight with 4,5 m (15') torch: 13.5 kg (29.8 lbs)
• Input power cable length: 3 m (10')
• Power supply type: Inverter - IGBT
• Engine drive requirement: 5.5 kW for full 30 A output
• Warranty: Power supplies have a 3-year warranty and torches a 1-year warranty.
