ALL ORDERS $9.99 FLAT RATE SHIPPING  (excludes HI & AK)

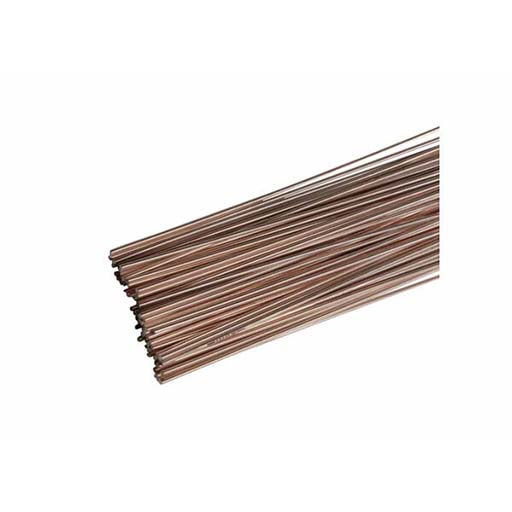

HARRIS PHOS Brazing Alloy Rod - 1/8 in - 36 in | 0636R

Brand: Harris Products
Manufacturer Part #:

0636R


Welding Supply Part Number: HWE0636R
 /

  • Save 49%
    $954.76 $483.55 / Pack
  •  Speedy Delivery | Ships in 1 Business Day
Sold in Packs of 25 LB

HARRIS PHOS Brazing Alloy Rod - 1/8 in - 36 in

HARRIS 0 phos-copper-copper brazing alloy is a low cost alloy use for many copper-to-copper applications where moderate fit-up can be maintained and brazing temperature is not critical. Conforms to the EU Reach & RoHS directive.

Features

  • Economical choice for copper brazing
  • Copper is self-fluxing
  • Alloy flows quickly at brazing temperature so requires close joint tolerance (less than 0.005")
  • Primarily used in manual brazing applications
  • Also a suitable for brazing brass
  • Operators should avoid over heating the brass and use Stay Silv white brazing flux
  • Not recommended for brazing steel or other ferrous base metals
  • Should not use HARRIS 0 if braze is exposed to sulfur or sulfur compounds in service
  • Recommended joint clearance of .002"-.007"
  • Conforms to the EU Reach & RoHS directive

    • Brand Harris Products
    Container Size 25 lb
    Container Type Box
    Overall Length 36 in
    Maximum Brazing Temperature 1500 °F
    MFG 0636R
    Minimum Brazing Temperature 1345 °F

    Description

    HARRIS PHOS Brazing Alloy Rod - 1/8 in - 36 in

    HARRIS 0 phos-copper-copper brazing alloy is a low cost alloy use for many copper-to-copper applications where moderate fit-up can be maintained and brazing temperature is not critical. Conforms to the EU Reach & RoHS directive.

    Features

  • Economical choice for copper brazing
  • Copper is self-fluxing
  • Alloy flows quickly at brazing temperature so requires close joint tolerance (less than 0.005")
  • Primarily used in manual brazing applications
  • Also a suitable for brazing brass
  • Operators should avoid over heating the brass and use Stay Silv white brazing flux
  • Not recommended for brazing steel or other ferrous base metals
  • Should not use HARRIS 0 if braze is exposed to sulfur or sulfur compounds in service
  • Recommended joint clearance of .002"-.007"
  • Conforms to the EU Reach & RoHS directive
