HARRIS 15 Brazing Alloy Rod - 1/16 in - 10 lb | 00015310

Brand: Harris Products
Manufacturer Part #:

00015310


Welding Supply Part Number: HWE00015310
 /

  • Save 36%
    $276.62 $177.02 / Pack
  •  Standard Delivery
Sold in Packs of 10 LB

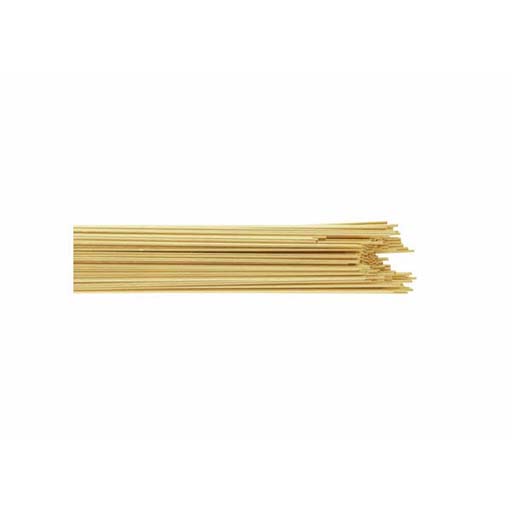

HARRIS 15 Brazing Alloy Rod - 1/16 in - 10 lb

HARRIS15 low fuming bronze is considered a "braze-welding" alloy as this copper/zinc alloy exhibits minimal capillary action during brazing. This limits joint design primarily to lap, tee, and butt joints. Butt joints require some edge preparation typically incorporating beveled edges to provide a location for filler metal to be applied and to ensure alloy penetration to the joint root. LFB was developed primarily to braze steel and some cast iron grades including malleable and grey iron. It can be used to join copper but due to its elevated melting temperature care must be taken during brazing to avoid overheating or melting the copper. It is used with the oxy-fuel process. These alloys are bare.

Features

  • Copper-zinc braze-welding bare rod
  • Exhibits minimal capillary action during brazing
  • Limited joint designs to lap, tee and butt joints, although butt joints require some edge preparation
  • Good machinability
  • Produces porosity-free deposits
  • Color matches yellow brass
  • Developed to braze steel and some cast iron grades, including malleable and gray iron. Also, used to join copper
  • Used with the oxy-fuel process
  • Corrosion resistance is similar to most high zinc brass alloys. Care should be taken on service conditions where water immersion is involved as dezincification is a potential issue

    • Brand Harris Products
    AWS Family A5.7
    AWS Classification RBCuZn-B
    Container Size 10 lb
    Container Type Box
    Finish/Coating Bare
    Overall Length 36 in
    Series 15
    Type Low Fuming Bronze
    Maximum Brazing Temperature 1750 °F
    MFG 00015310
    Minimum Brazing Temperature 1670 °F
    Subcategory Welding Consumables
    Diameter (Inches) 1/16
    UNSPSC 11170000

    Description

    HARRIS 15 Brazing Alloy Rod - 1/16 in - 10 lb

    HARRIS15 low fuming bronze is considered a "braze-welding" alloy as this copper/zinc alloy exhibits minimal capillary action during brazing. This limits joint design primarily to lap, tee, and butt joints. Butt joints require some edge preparation typically incorporating beveled edges to provide a location for filler metal to be applied and to ensure alloy penetration to the joint root. LFB was developed primarily to braze steel and some cast iron grades including malleable and grey iron. It can be used to join copper but due to its elevated melting temperature care must be taken during brazing to avoid overheating or melting the copper. It is used with the oxy-fuel process. These alloys are bare.

    Features

  • Copper-zinc braze-welding bare rod
  • Exhibits minimal capillary action during brazing
  • Limited joint designs to lap, tee and butt joints, although butt joints require some edge preparation
  • Good machinability
  • Produces porosity-free deposits
  • Color matches yellow brass
  • Developed to braze steel and some cast iron grades, including malleable and gray iron. Also, used to join copper
  • Used with the oxy-fuel process
  • Corrosion resistance is similar to most high zinc brass alloys. Care should be taken on service conditions where water immersion is involved as dezincification is a potential issue
