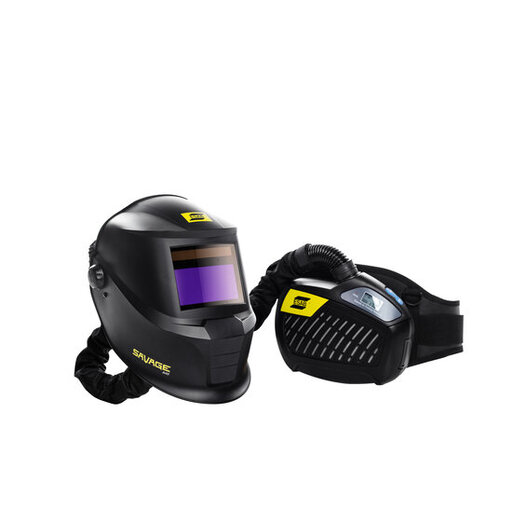

ESAB SAVAGE A40 PAPR Welding Helmet System | 0700002400

The Savage A40 PAPR pairs the advanced features of the Savage A40 welding helmet with a powerful PAPR system designed to filter 99.9% of fine particles from the air during routine procedures. As a fully featured system, welders can now experience optimal True Color with 1/1/1/2 class optical view of the weld pool through a large 100 x 50 mm (3.93 x 1.96 in.) ADF. The external grind button and knob make it simple to adjust the shade control from 9-13, allowing an easy switch for different welding processes. The Savage A40 PAPR NIOSH-approved welding system represents the features welders need to get the job done quickly, accurately and safely.

Exceptional Comfort, Extraordinary Breathability

Lightweight helmet shell. Multi-point adjustable headgear. Protection from heat, sparks and spatter. This helmet stands tough, while offering exceptional comfort, no matter the application. It provides extraordinary breathability too with the advanced PAPR system, which has three air flow adjustments ranging from 170 to 230 liters per minute to flow. It delivers top-notch filtration, too, removing 99.9% of fine particles in the air during routine welding.

A Bigger, Better View, So You Can See True Colors

Get a clear, bright view of your workpiece with the Savage A40 PAPR system. It’s equipped with a 3.93 x 1.96 in. (10 x 5 cm) viewing area for a wider field of vision and greater spatial awareness. Plus, it has a 1/1/1/2 optical-class lens made with our ultra-clear, true-color technology. You’ll get increased weld pool clarity, enhanced definition – and a bigger, better view of your weld.

Remarkable Technology That's Battle-Ready

With Savage A40 PAPR system, the sensitivity and delay controls inside the helmet allow for seamless setting adjustments. And Savage A40’s four light sensors provide a faster auto-darkening response, especially when working out of position. With the high-capacity, rechargeable battery, you can even work for up to 8 hours between charging.

Wild External Features Make it Easy to Use

The Savage A40 is designed to be functional for any welder. You can adjust the welding shade or tap into grind mode from the side of the helmet. This ensures you can keep your helmet on and down for the ultimate protection. And with its DIN 9–13 adjustment knob, it’s easy to change shades, even while wearing heavy gloves. Simple to use and adjust – it’s Savage.

Highlights

• NIOSH-approved PAPR filtration system delivers three-setting adjustable flow from 170 to 230 liters per minute
• Convenient push-button interface with easy to read LCD display for PAPR adjustment
• High efficiency 2 stage filtration system with spark arrestor for added safety
• LCD display indicating fan speed, flow rate and battery charge level with additional audible alert for low battery
• High quality shielded air tube with simple connections
• Fully adjustable PAPR harness and multi-point helmet headgear adjustment for total comfort
• Four sensor ADF with adjustable shade, sensitivity and delay controls to dial in the precise darkness and reaction speed
